Changing Config Number in Model 640

Changing Config Number in Model 640

  1. Press and hold the "Hold/Menu" button for three beeps then release.
  2. Enter "640".  Use "RM" to increase the displayed value and "M+" to decrease it.  Press the "Hold/Menu" button to move one digit to the left.
  3. Press "Print/Select" to accept and "640" will be shown again.
  4. Press "Print/Select" and "CONFIG" will be displayed.

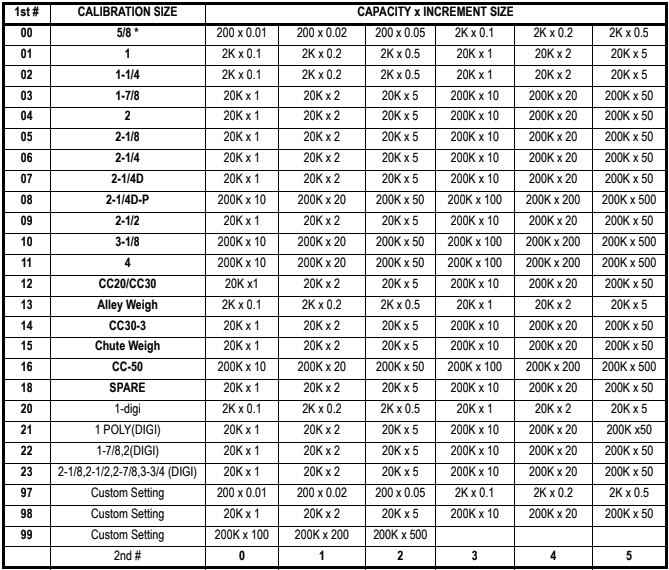

  5. Press "Print/Select" once more and the config number will be displayed.
  6. Enter a new config number using "RM" to increase each digit and "HOLD/MENU" to move one digit to the right.
  7. Press "PRINT/SELECT" to enter the number and return to "CONFIG".
  8. Press "NET/GROSS" repeatedly to return to the gross weight screen.
