Crown 2-Pin Power Cable

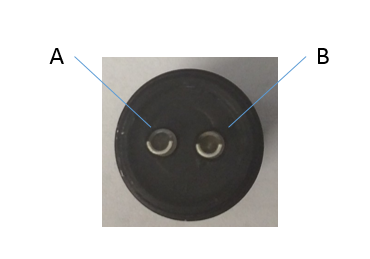

Crown 2 PIN 12v DC Power Connector
|
PIN
|
Color
|
Description
|
|
A
|
RED or WHITE
|
+ 12 V DC
|
|
B
|
BLACK
|
GROUND
|
The wire colors inside the indicator are opposite of the chart above.
