OEM Scale Kit vs. Scale-Tec Scale Kit

Some models of grain carts have two different types of scale systems offered.  The information in this section provides a detailed explanation as to the differences of the scale systems and when it would be more appropriate to utilize one over the other.   Both scale systems offer advantages pending your need.


Primary Difference

The primary difference in the scale kit design, is the load cell types provided on the rear axles of the grain cart.   Below are some illustrations and detailed information to identify why you would want to consider one over the other.

CT Scale Design

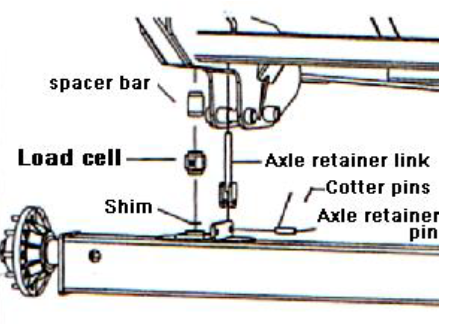

 Compression Transducer (CT) load cell system above axle assembly


  1. Easier to install initially.
  2. If using Wide Floater Tires, this kit is usually more accurate.
  3. This system is more susceptible to mechanical binding and can have 5% or more error when unlevel or binding.
  4. Commonly higher replacement item compared to spindle load cells due to the abuse on the rear spindle.
Notes
The only time Scale-Tec recommends the CT Load Cell system is if the grain cart has wide metric floater tires.  If you do not have the wide flotation tires, it is best to utilize the spindle type.

Spindle Scale Design

Spindle type load cell system



  1. More time consuming to install.
  2. Provides better scale accuracy for carts with Tires Smaller Than 1100mm.  1-1.5% error.
  3. Provides better durability in field environment over CT type of Load Cells.
  4. Hardened at higher capacity tolerance more than original spindles on grain cart.



Alert
Disclaimer: These are general recommendations.  Each cart is unique and may perform better or worse than expected with one kit or the other.
