Digi-Star Amp Load Cell Cable

• Related Articles

• Load Cell Wire Functions

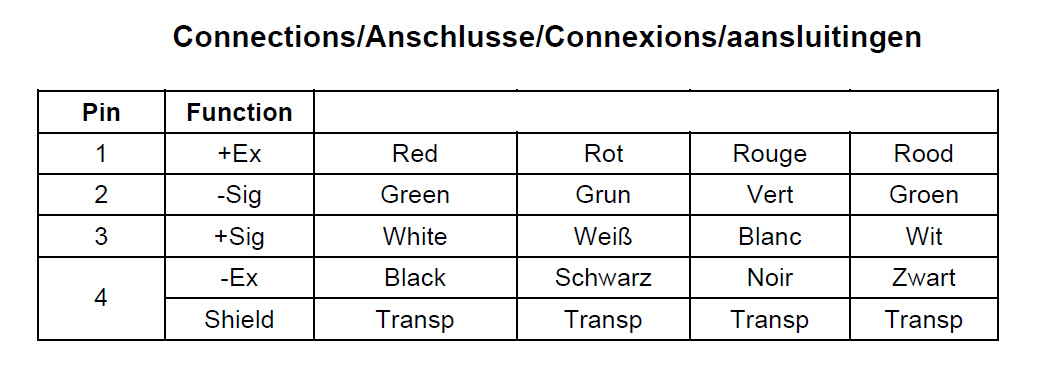

  Load Cell Wire Functions Function +EX -SIG +SIG -EX GROUND Digi-Star, RAVEN, Reliable RED GREEN WHITE BLACK TRANSPARENT Weigh-Tronics GREEN RED WHITE BLACK ORANGE Dinamica Generale, Eaton, Rice Lake, Rinstrum, Trans Cell, G-ELDER RED WHITE GREEN ...

• Amp Power Cable

• Crown 4-Pin Load Cell Cable

  CROWN 4-PIN CONNECTOR WIRE ILLUSTRATION  PIN COLOR A WIRE BRAID B RED C BLACK D WHITE NOTE:  4 PIN Load Cells/Weigh-Bars can not be intermixed with 5-PIN Load Cells.   They can, however, be summed together at a junction box and utilized with a 5 PIN ...

• 8-pin Amp Connector to CP130 (Digi-Star Indicators) Cable

  Pin 2 Orange Pin 3 Yellow Pin 6 Green Photo of Cable above

• How to Wire a Junction Box When the Indicator and Load Cells are Different Brands

  How to Wire a Junction Box When the Indicator and Load Cells are Different Brands Compare the wire functions between the two brands and identify which colors should be paired. If wires need to be switched, it is easiest to move only the wires of the ...
