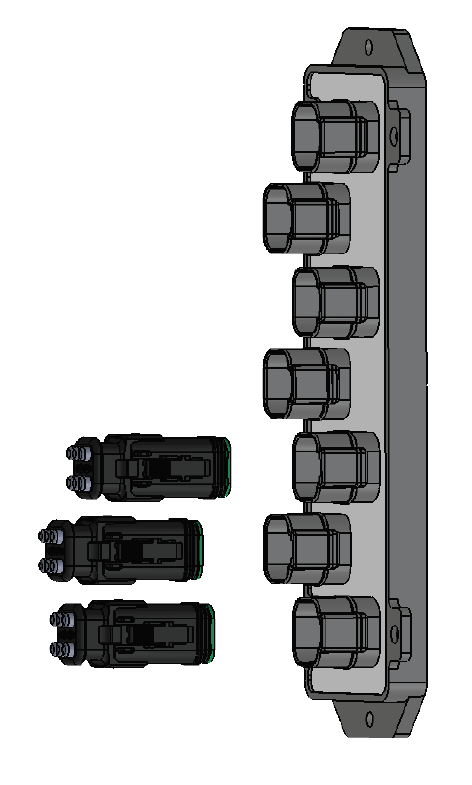

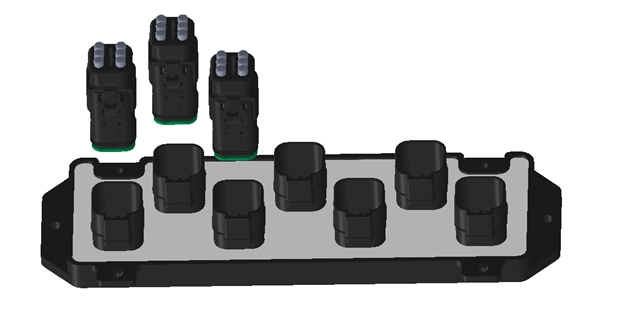

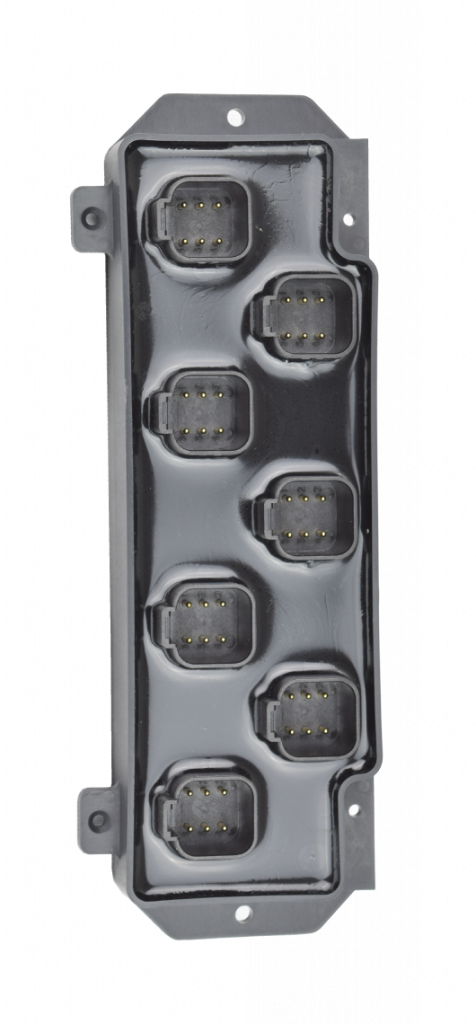

DT6 Junction Bank Overview
We recommend routing your load cell and weigh bar connections through the DT6 junction bank, which comes standard with all of our scale kits. Bare wire connections and damaged or weathered junction boxes are common trouble areas in a scale system. A junction bank helps protect your wires from the elements. It also simplifies the process of diagnosing problems with your scale system by allowing simple connection and disconnection of the cables all in one place. The DT6 junction bank features water tight connections, high resistance to corrosion and gold plated pins for superior connection. Read more about junction banks and cables here.
