Entering a Configuration Number on a Model 615 Indicator

Entering a Configuration Number on a Model 615 Indicator

Entering a Configuration Number on a Model 615 Indicator

This is the best method to calibrate a 615 if using AWT loads cells of a known calibration diameter.

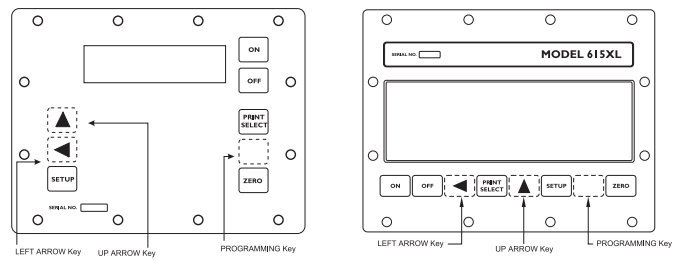

1.      Press the hidden programming key for 5 seconds until "615" is displayed.



 Some Model 615's may have NET/GROSS buttons that replace the hidden arrow keys.


2.      Press SETUP to display "Conf".
3.      Press PRINT/SELECT to display the current config number.
4.      Determine the new configuration number using the tables below.
      a.      Find the desired increment size and capacity (Calibration Diameter) in Table 2 to determine the first three digits of the config number.



      b.      The fourth digit determines how close to zero the Auto Zero Tracking function will take effect.  Use 0 for most applications.







      c.      The fifth digit determines the units used by the scale and whether or not capture is turned on.  Use 0 for most applications.



5. Enter the new configuration number by using the hidden up arrow to increase the selected digit and the hidden left arrow to move to the next digit.
6. Press PRINT/SELECT to save the number and return to "Conf"
7. Press ZERO to return to weighing mode.
