How to Identify a Remote or Serial Port
Digi-Star Ports
The port on the left is a serial port. It has 8 male pins on the bottom of the indicator. Serial ports may be labeled as Serial, Printer, COM1/COM2, J904, or J905.
The port on the right is a remote port. It has 8 female holes on the bottom of the indicator. Remote ports may be labeled as remote or J903.

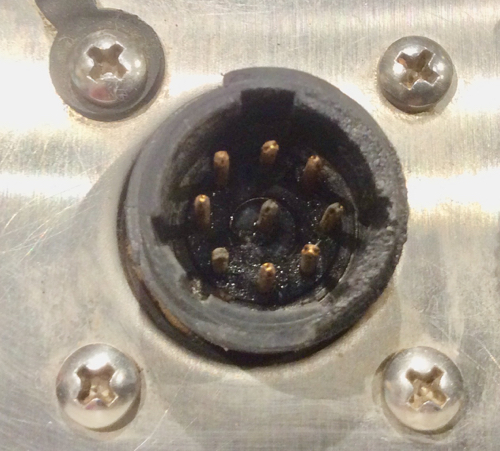

Weigh-Tronics Remote Port
The port above is a remote port. It has 9 male pins on the bottom of the indicator. Weigh-Tronics remote ports are typically not labeled.
