Scale-Tec Point DT8 Connector

Scale-Tec Point DT8 Connector

The Scale-Tec POINT system utilizes the 8 PIN connector (AT06-08SA-SR2BK) that supports the following interfaces:
  1. Serial (RS232) (COM1 and COM2)
  2. CANBus (ISOBUS)
  3. POWER 12v DC
  4. 3 Amp Digital I/O (AWT Base Connector Only)

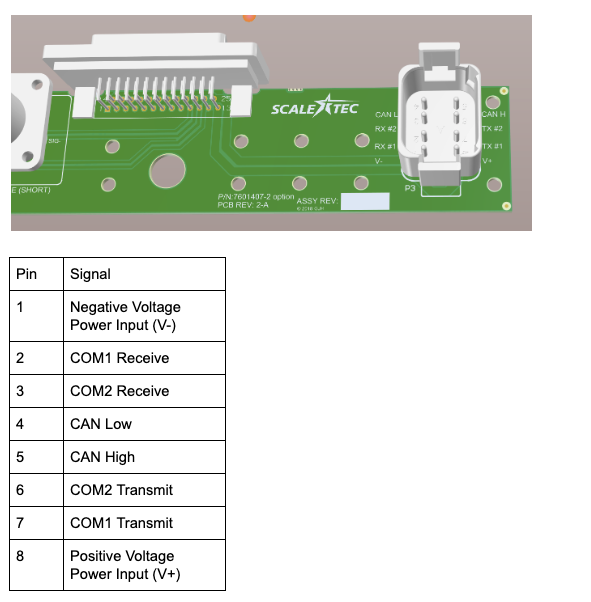

Below is the standard PINOUT for both the Deutch (AT Series) connection type of base and the Amphenol (Digi-Star) connection type base.


* DT6 & AMP connector only
    • Related Articles

    • Load Cell Connector Guide

      Image Connector Type Description DT6 6 Pin Deutsch Connector - Used on all new Scale-Tec Scale Kits Crown 5 Pin Crown Connector - Used by Avery Weigh-tronix and Dinamica Generale M12 5 Pin M12 Connector, also known as EZ-Mate - Used on some Digi-Star ...
    • 8-pin Amp Connector to CP130 (Digi-Star Indicators) Cable

      Pin 2 Orange Pin 3 Yellow Pin 6 Green Photo of Cable above
    • Scale Link Pin-Out

      Pin Out Function 1 + 12 vDC 2 CAN-H 3 - GND 4 CAN-L
    • AT04 Connector Pin-Outs

      AT04 connectors are used for POINT GPS ports and some POINT power ports. The pin-outs are shown below.
    • Instructions for Replacing AWT 5 Pin Crown Connector Ends

      Instructions for Replacing AWT 5 Pin Crown Connector Ends Step 1. Cut the damage ends off of the cables.     Step 2. Install the boot (P/N:24167-0017) onto the load cell cable.    Step 3. Strip back the outer shielding 1 ¼”.   Step 4. Insert the ...
