Soldering Rin Bars

Soldering Rin Bars

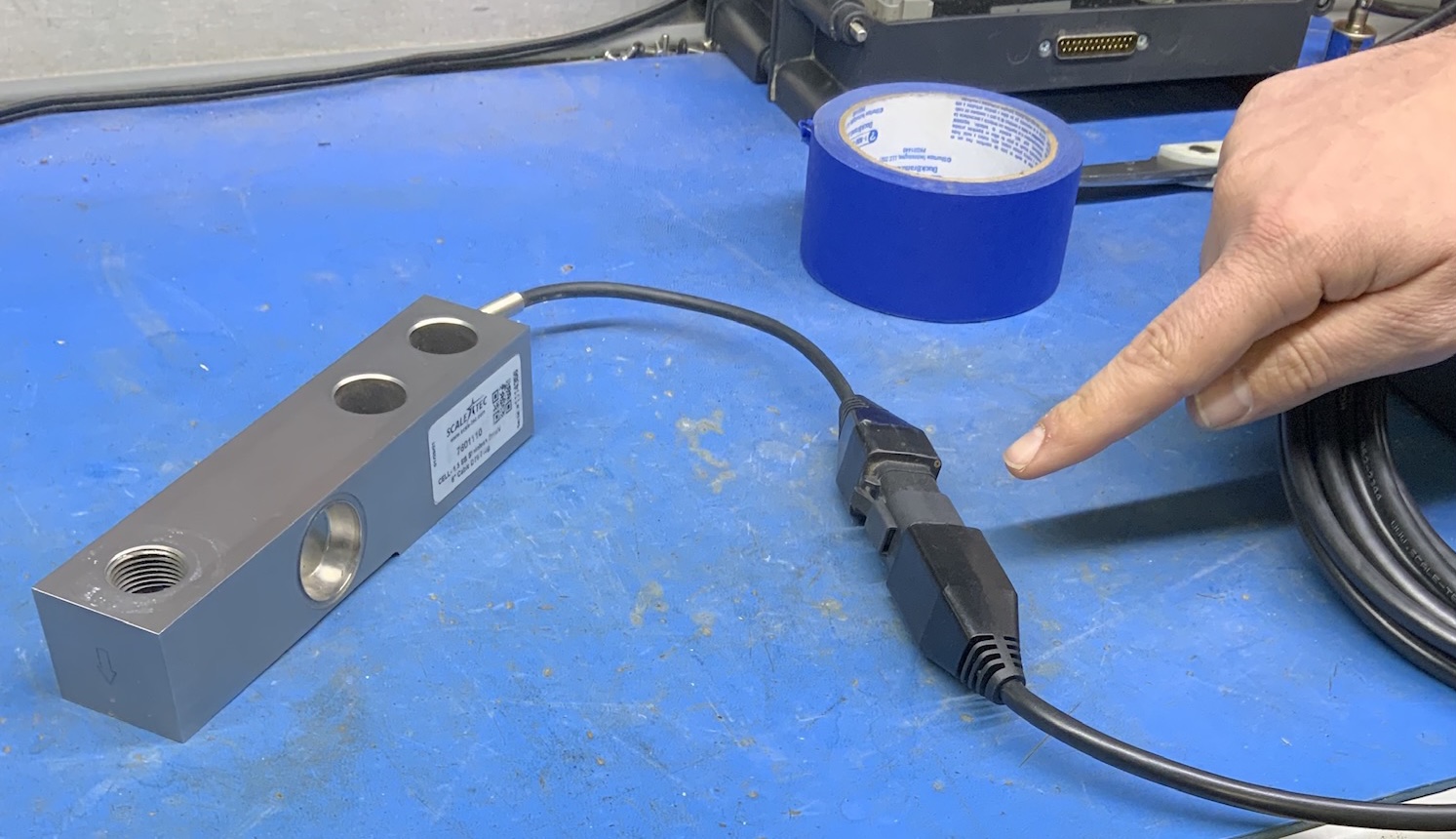

Remove inline connection

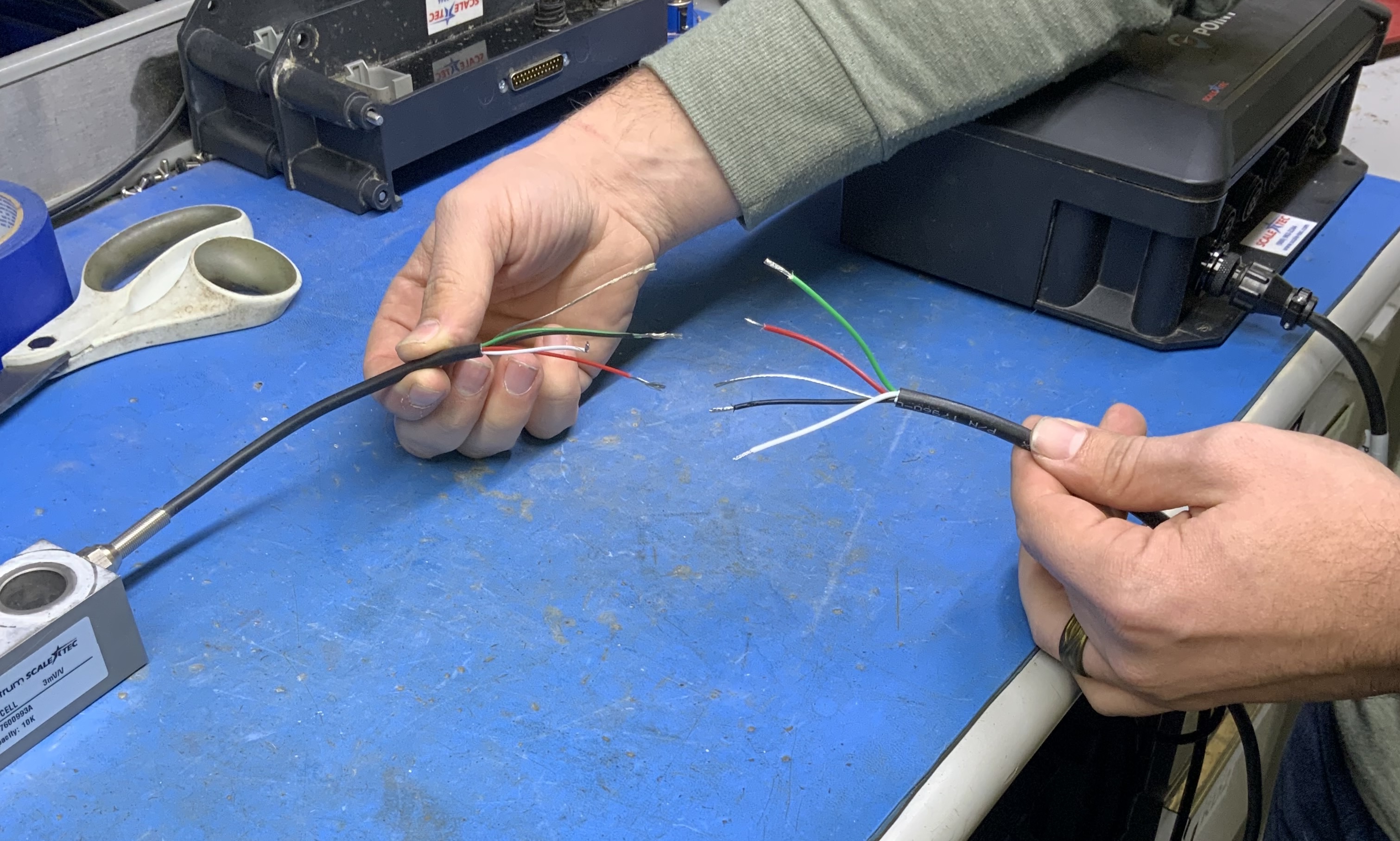

Remove a couple inches of the outside coating on both sides and strip back each wire about 3/8" - 1/2"

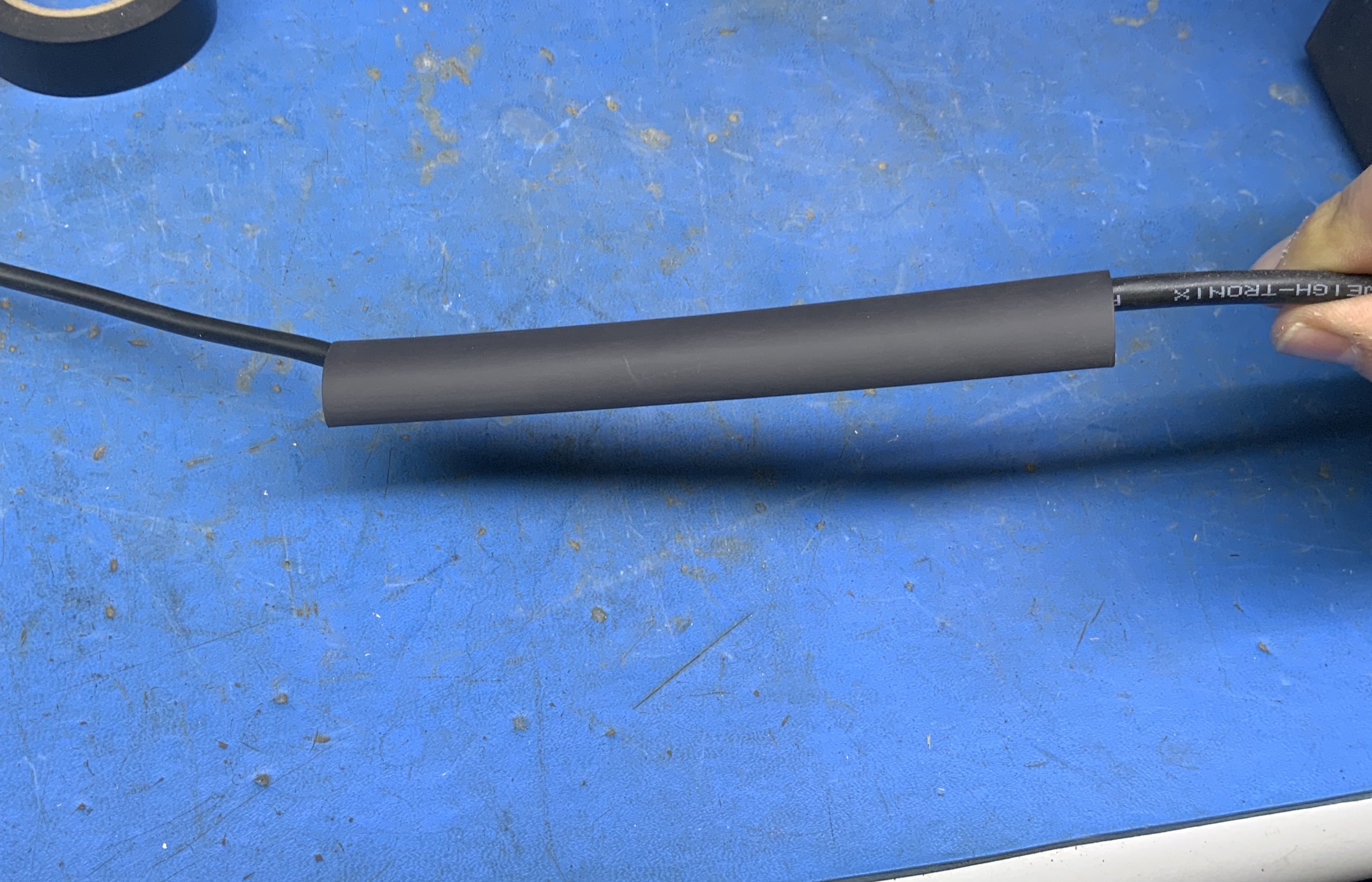

Place adhesive lined shrink tube over the cable before connecting wires.

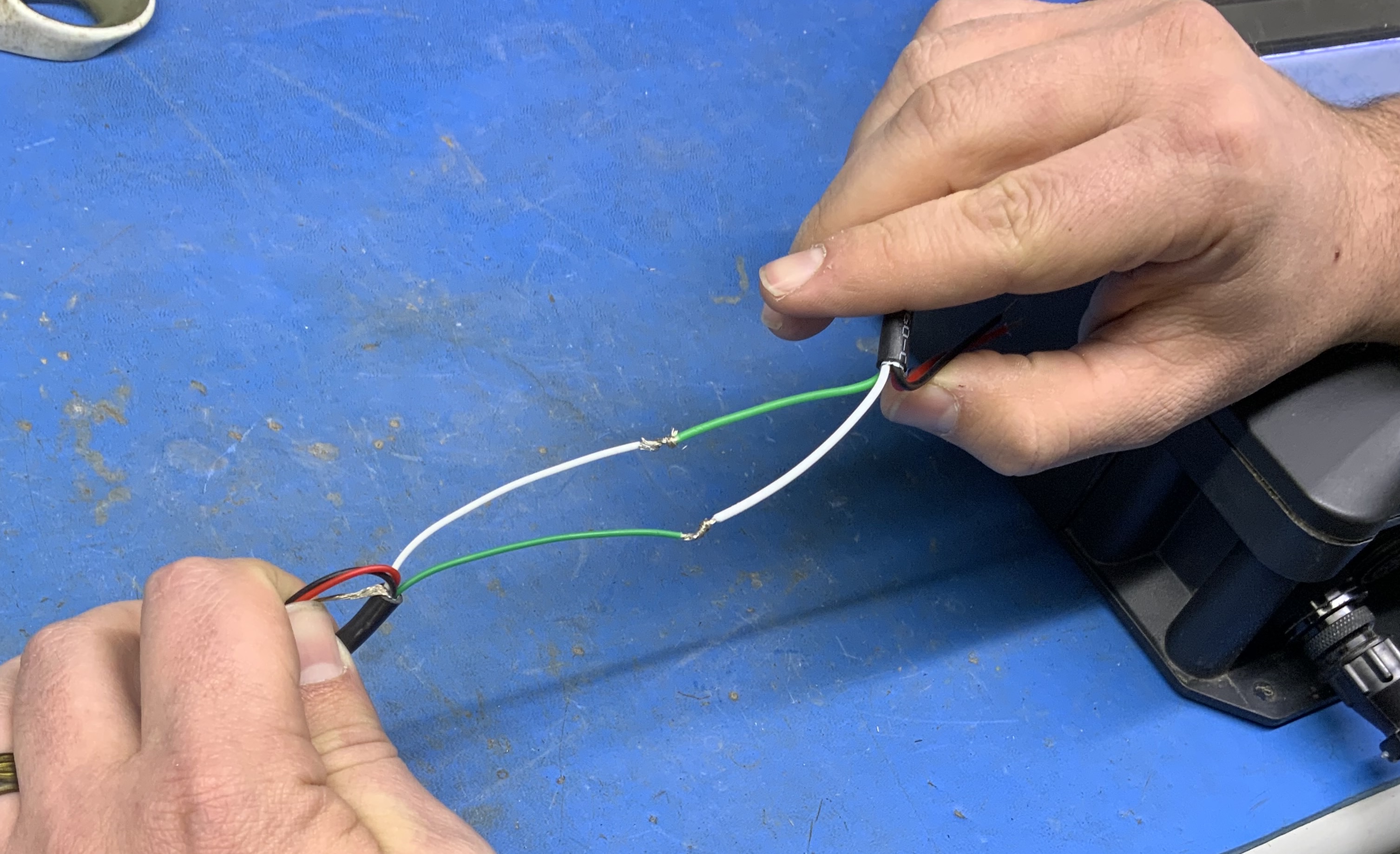

Swap the green and white wires, all others will be color for color.

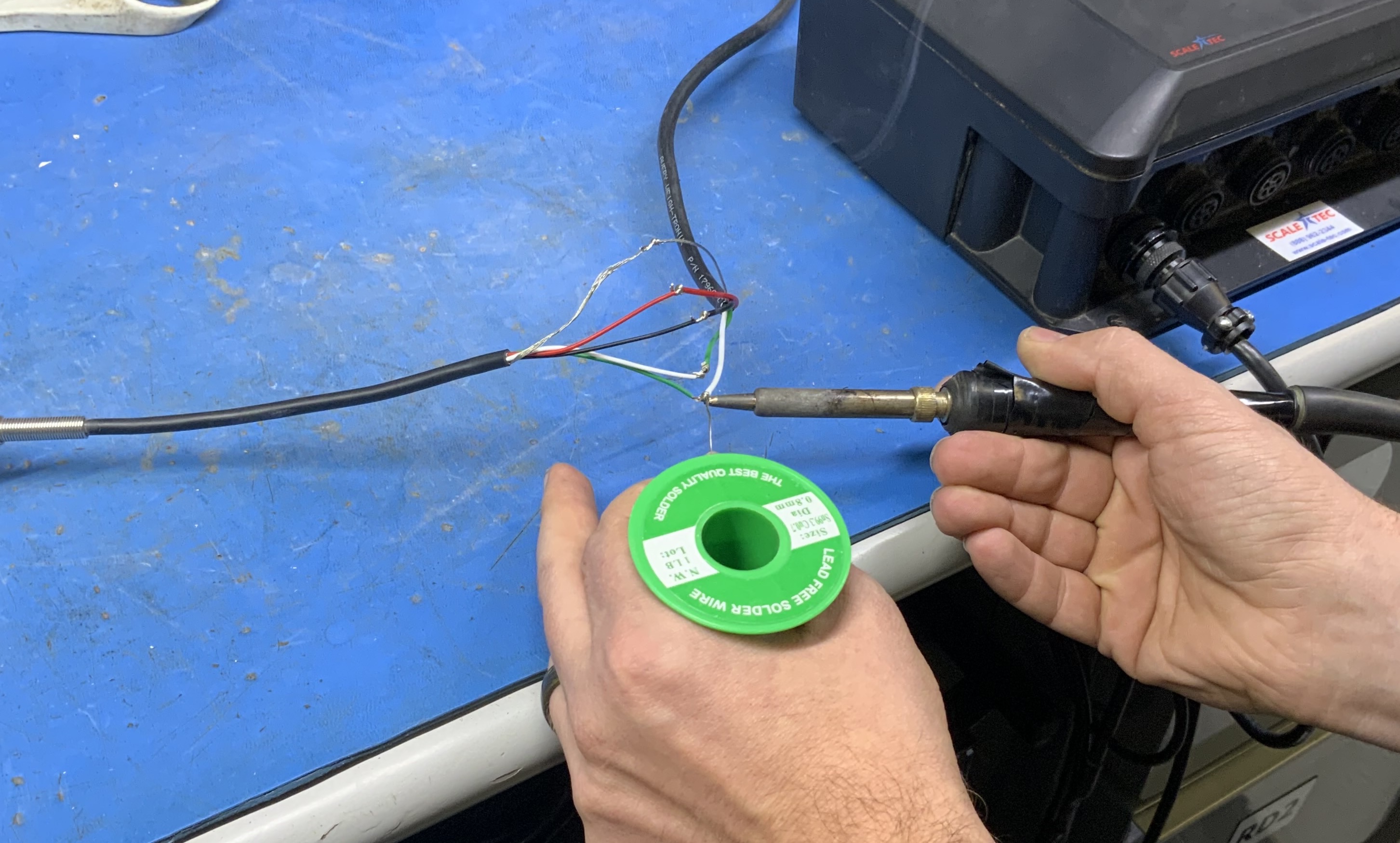

Solder each connection

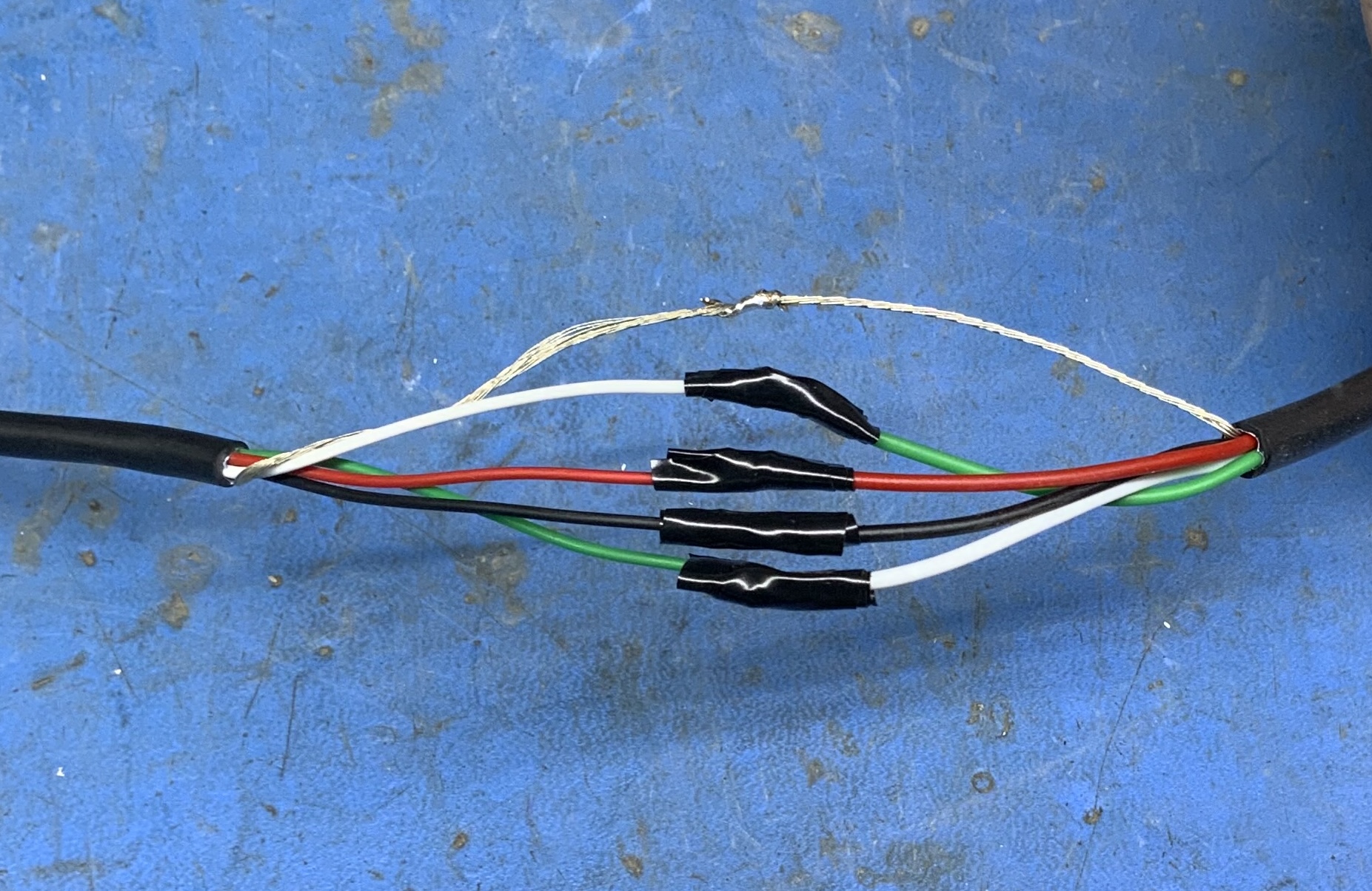

Tape each connection

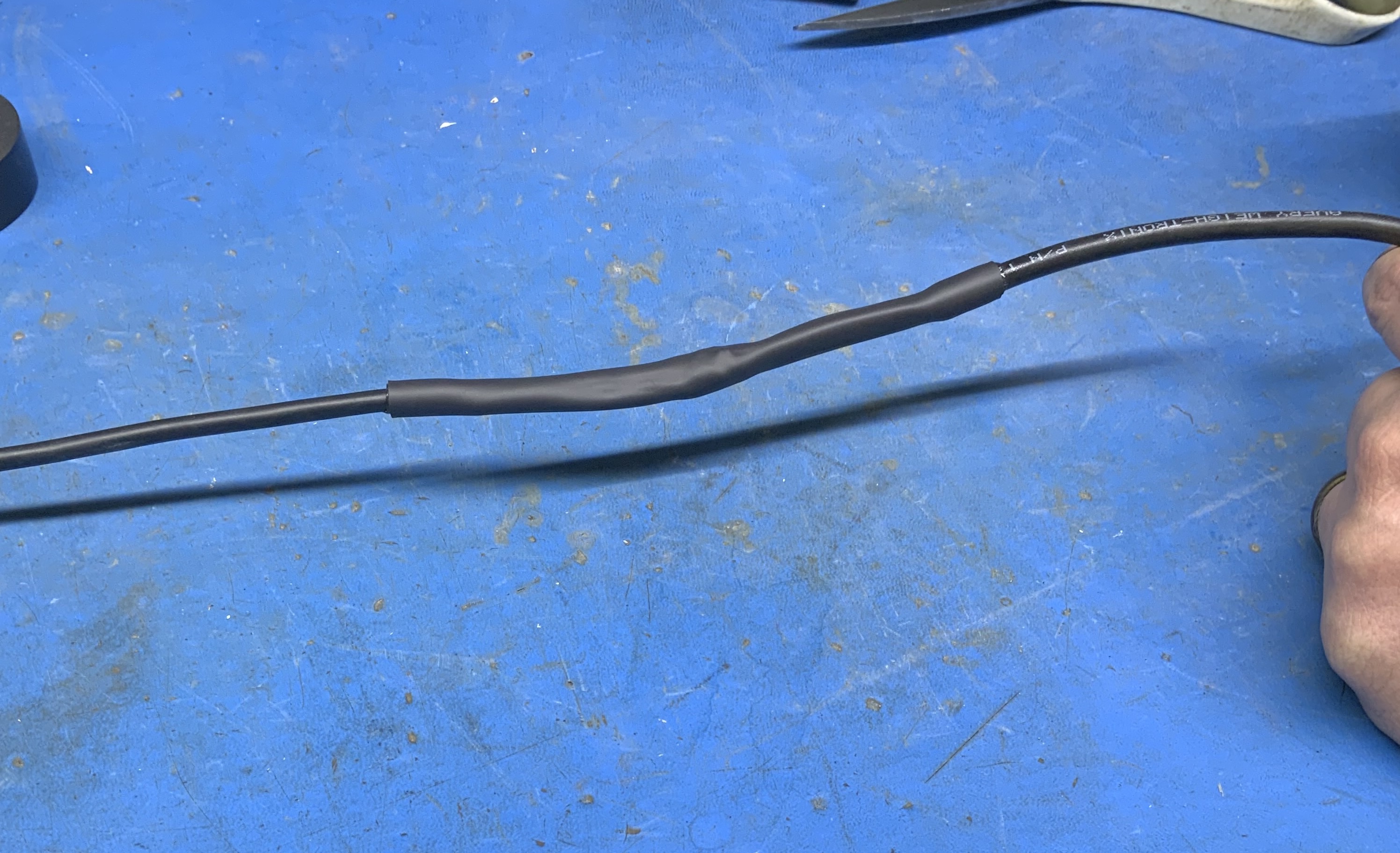

Place shrink tube so it is covering the entire splice.
