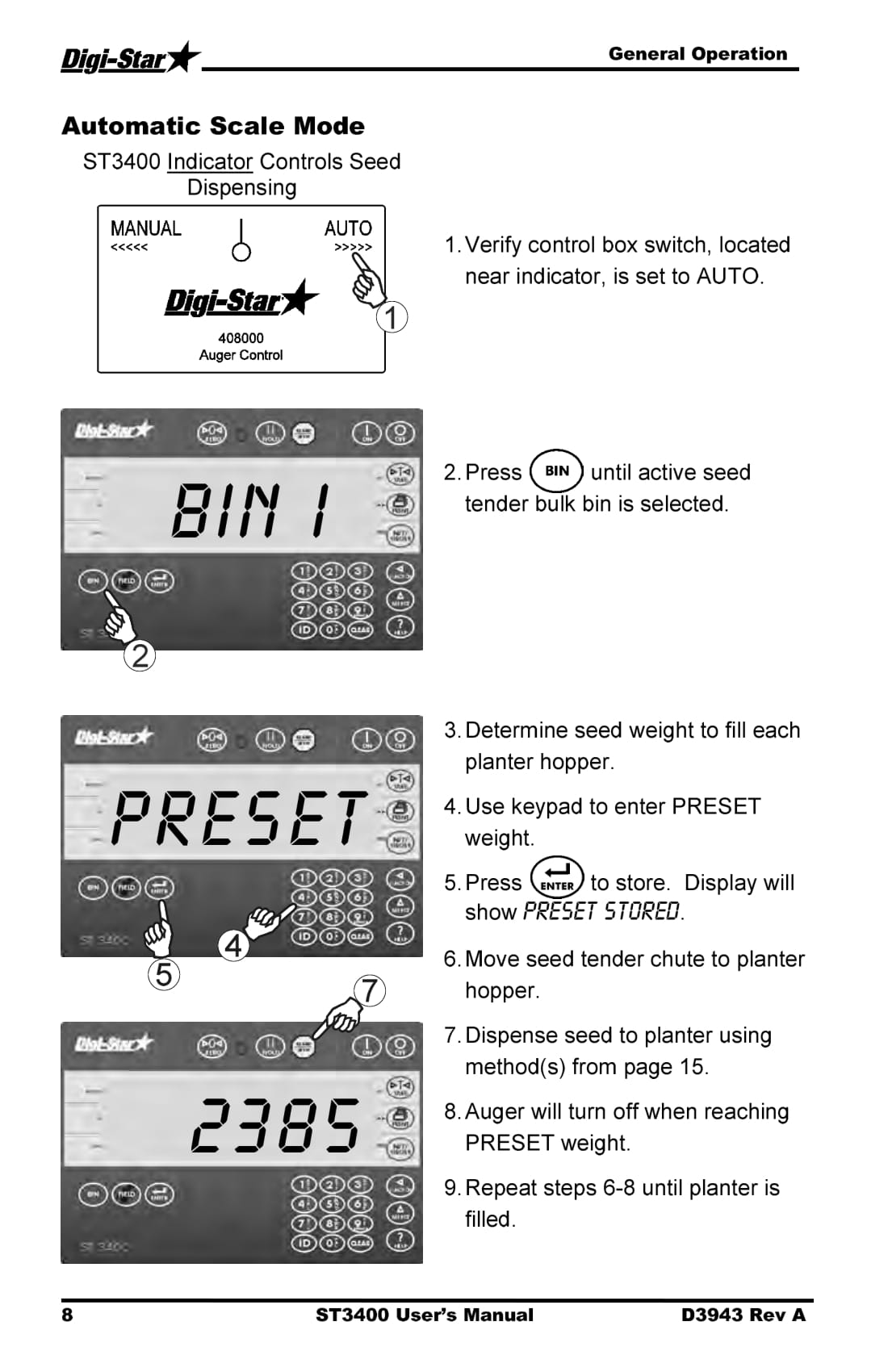

Using the ST3400 Automatic Scale Mode

The Automatic Scale Mode allows the indicator to turn off the auger when the preset weight is reached.

If automatic scale mode is not desired, the scale can be used normally by moving the control box switch from AUTO to MANUAL.

When page numbers are mentioned in the excerpts below, see the attached manual.



Preset

The Preset value is the desired weight to be added to each hopper.

Tolerance

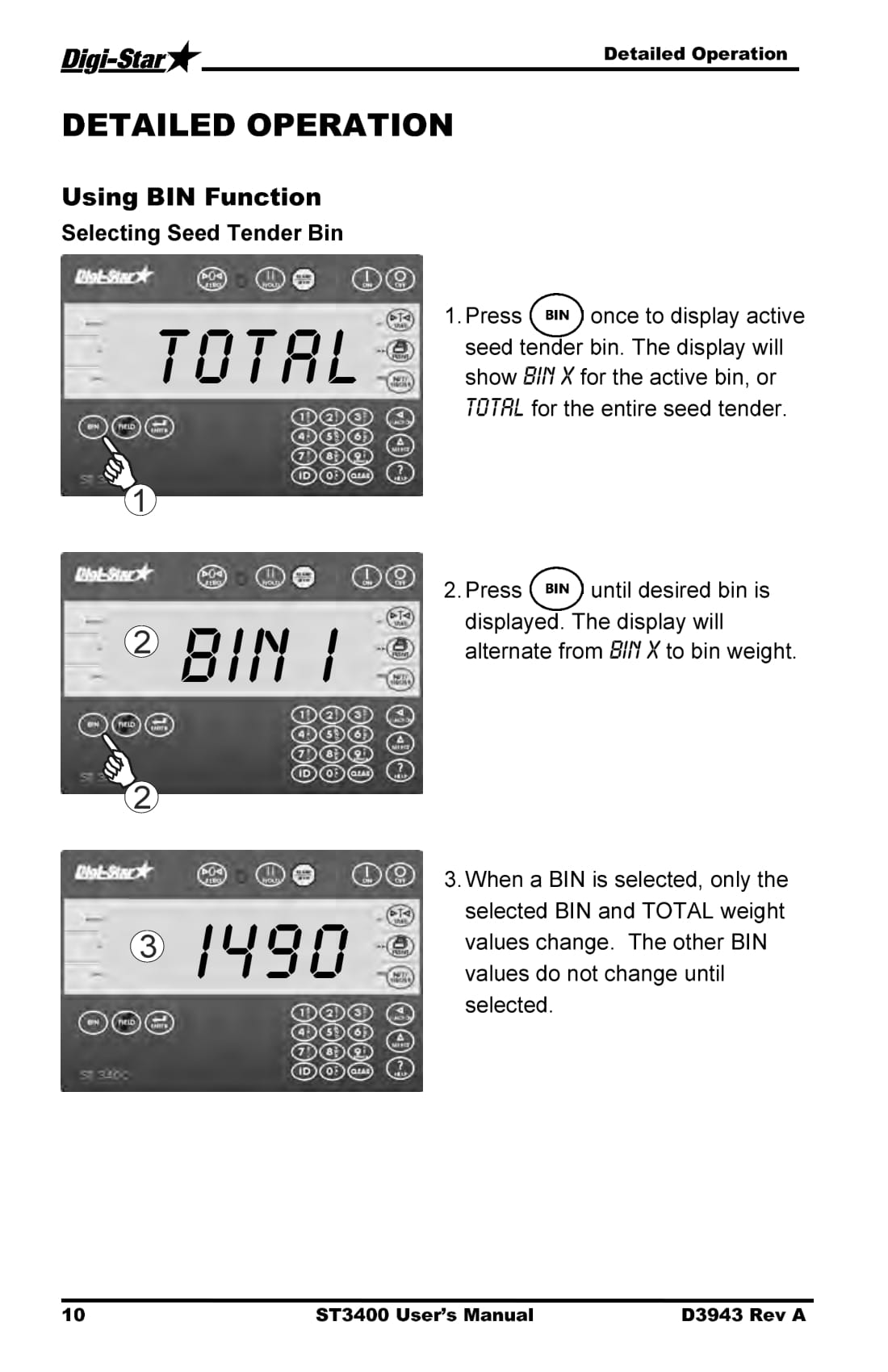

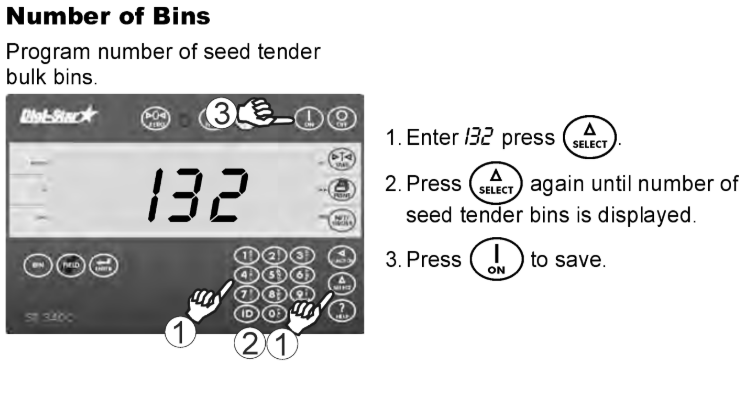

Bins

This could be either bulk bins or Pro Box style containers.  Enter a value of 1 to disable the bins function.

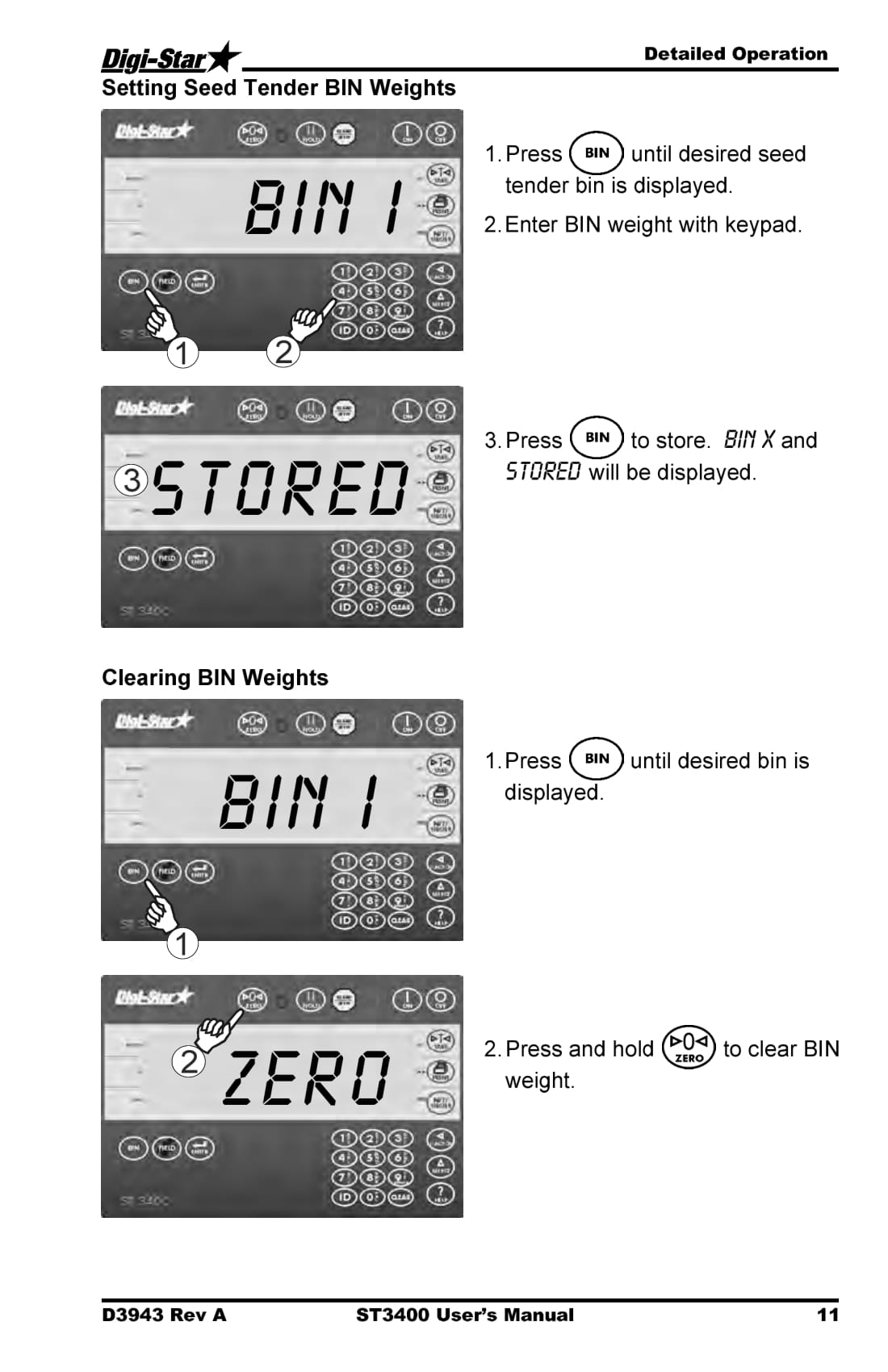

If the weight of a bin is known, it can be entered and stored.

Key 67 Detected

A "Key 67 Detected" error is caused by the indicator detecting that power for the auger is on when the indicator expects it to be off.

This can be resolved by pressing Off or On/Off button on the auger control to reset the system.
