Using the ST3410 Automatic Scale Mode

Using the ST3410 Automatic Scale Mode

The Automatic Scale Mode allows the indicator to turn off the auger when the preset weight is reached.

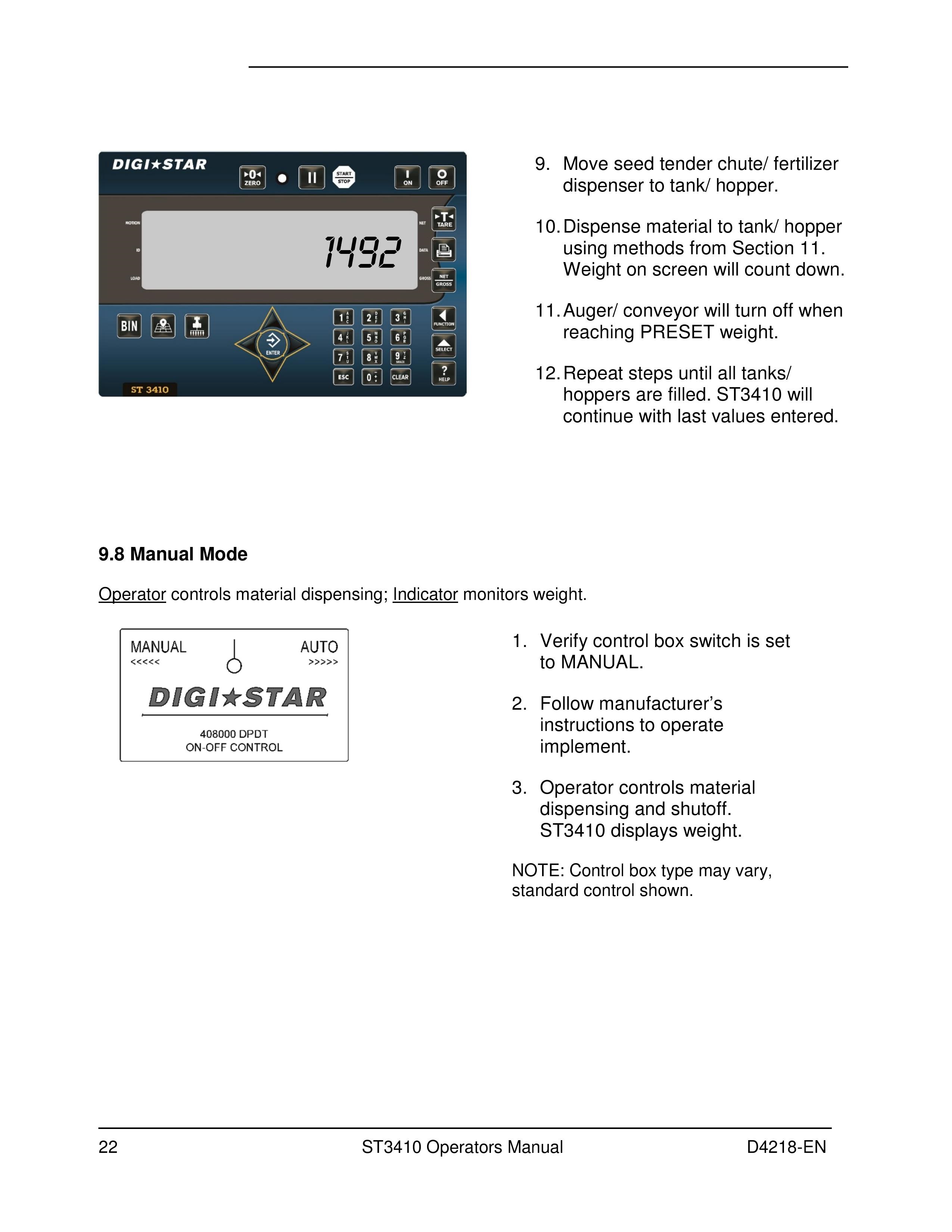

If automatic scale mode is not desired, the scale can be used normally by moving the control box switch from AUTO to MANUAL.
When page numbers are mentioned in the excerpts below, see the attached manual.

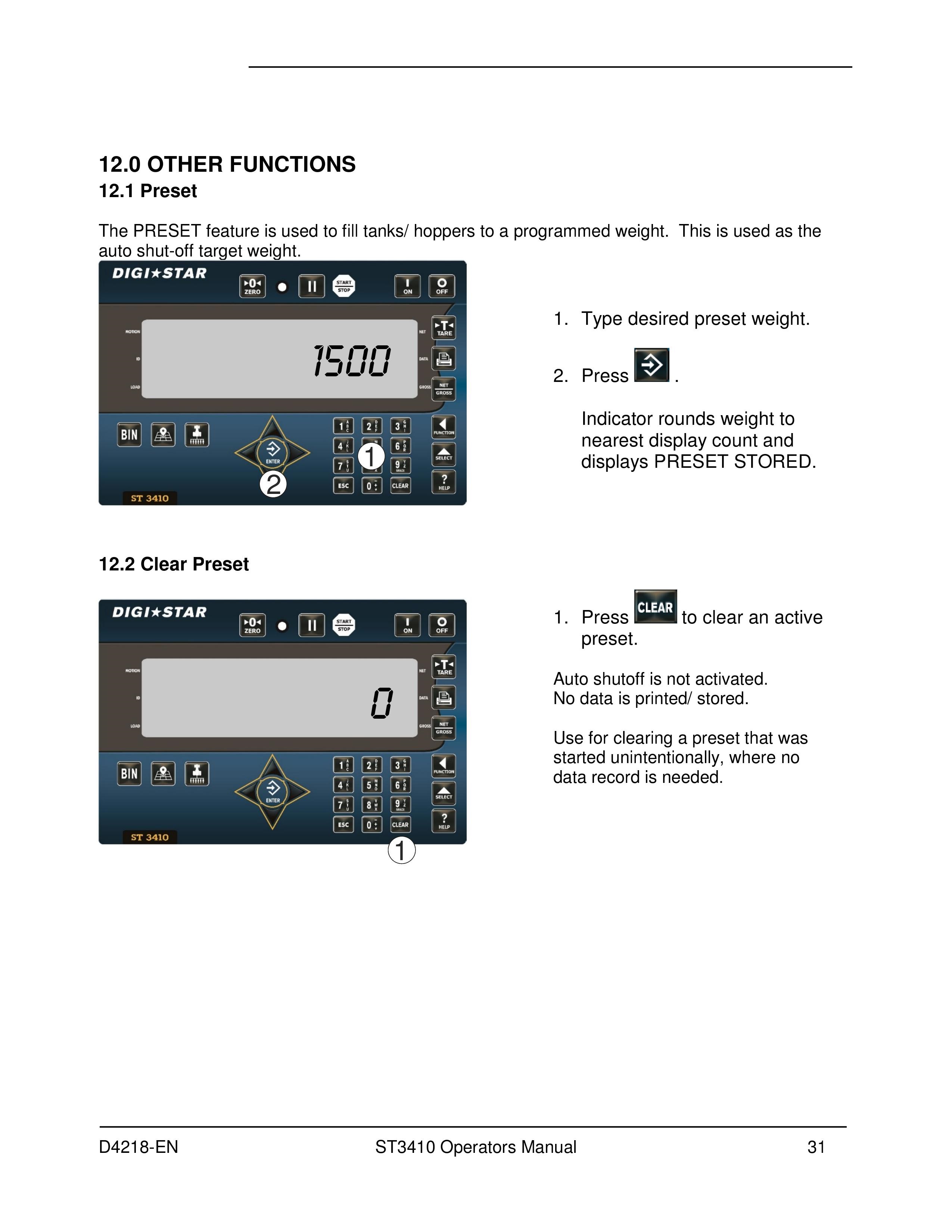

Preset

The Preset value is the desired weight to be added to each hopper.

Tolerance

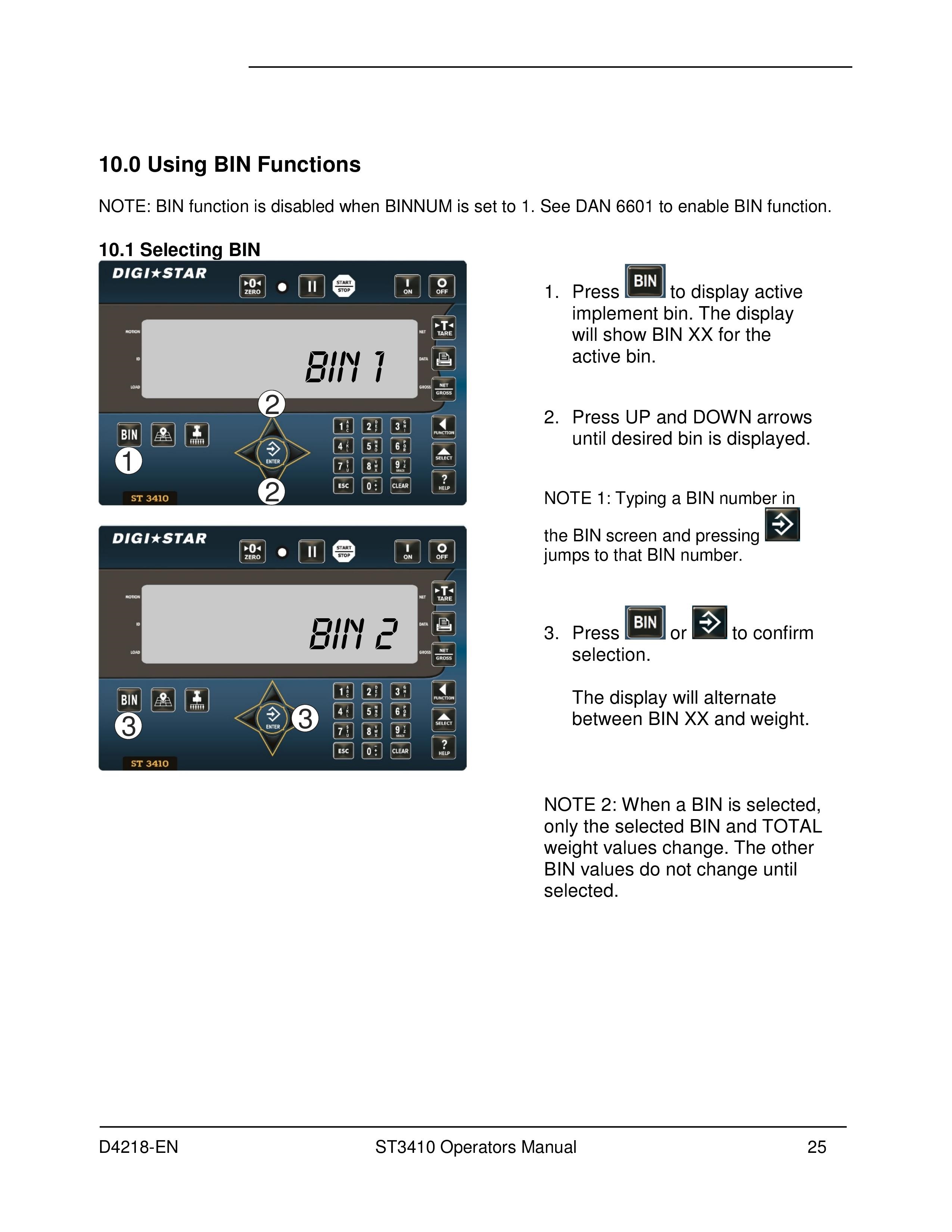

Bins

          The number of bins is the number of separate containers seed is being dispensed out of.

This could be either bulk bins or Pro Box style containers.  Enter a value of 1 to disable the bins function.
